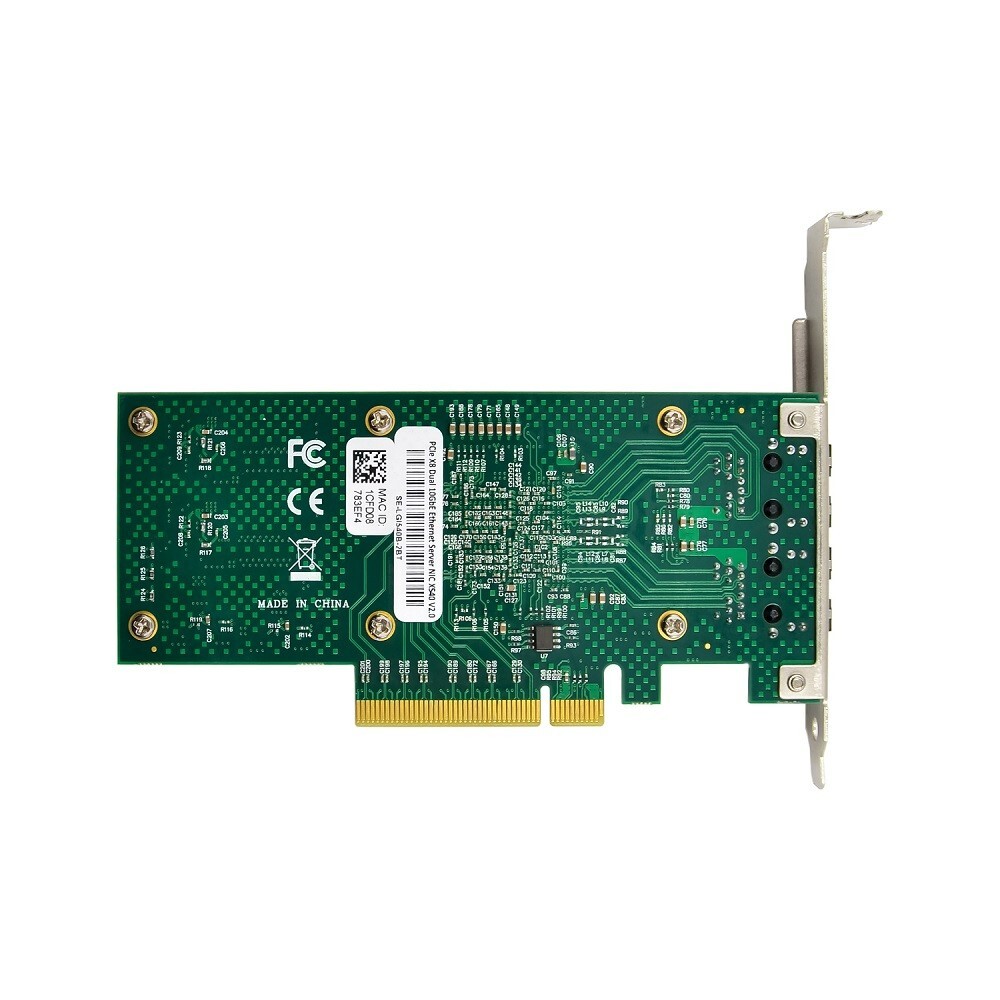

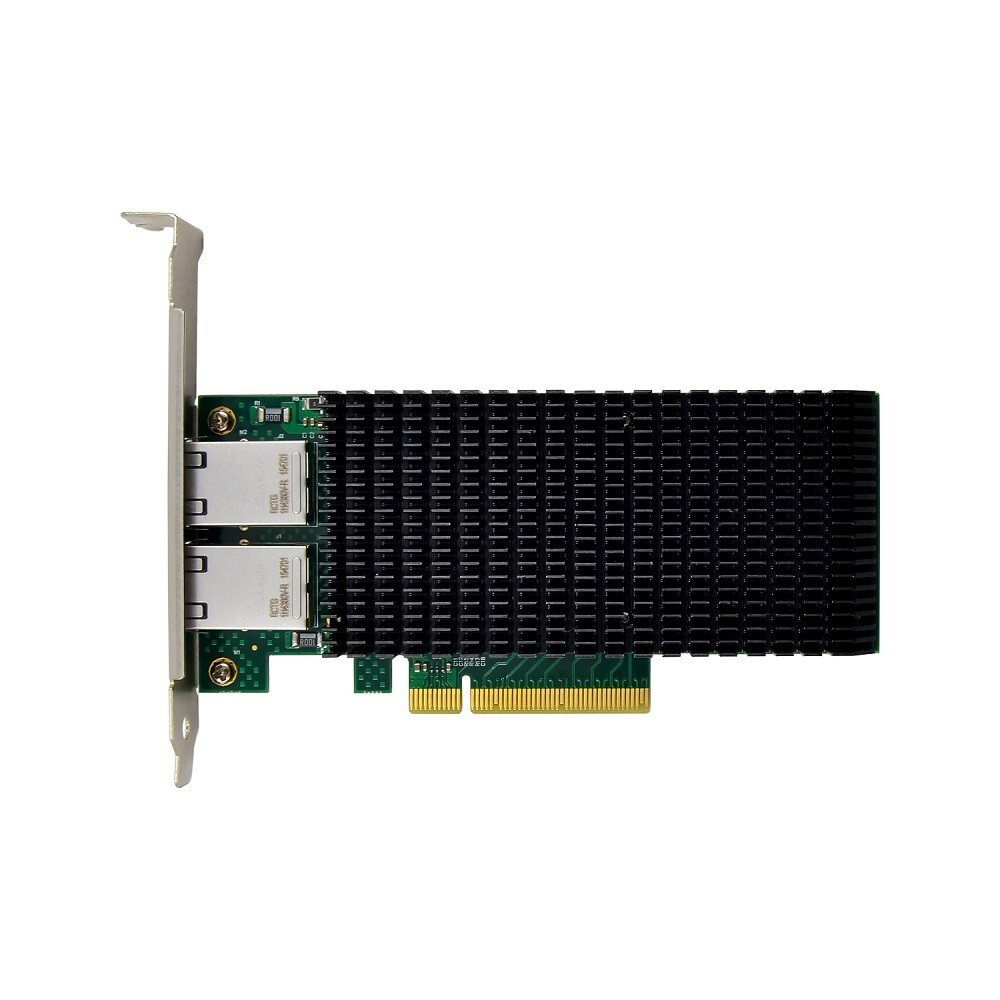

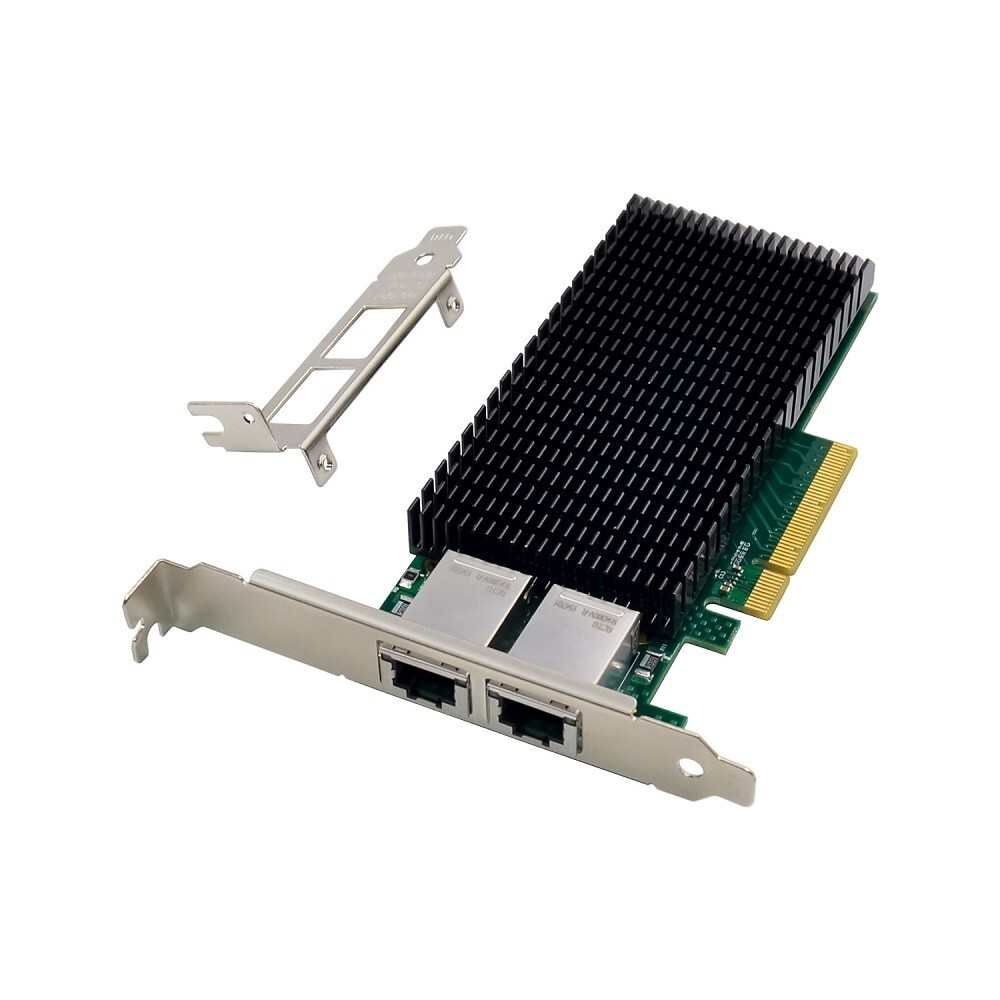

X-MEDIA XM-NA6821 | 2-Port 10Gbps Gigabit PCI Express PCIe x8 Network Card
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Compatible Brand | Universal |
| External Interfaces | Ethernet (RJ-45) |
| Chipset | Intel X540-T2 |
| MPN | XM-NA6821 |
| Item Length | 5.50 Inch |
| Compatible Product Line | Universal |
| Maximum Data Rate | 10 Gbps |
| Brand | X-MEDIA |
| Form Factor | Adapter |
| Type | Lan Card |
| Unit Type | Unit |
| Number Of Ports | 2 Ports |
| Manufacturer Warranty | 1 Year |
| Item Height | 0.75 Inch |
| Model | X-MEDIA XM-NA6821 |
| Country/Region Of Manufacture | China |
| Compatible Port | PCI Express x8 |
| Internal Interfaces | PCI Express x8 |
| Item Width | 2.75 Inch |
FEATURES: · IEEE 802.3ab/an and 10G Ethernet specification compliance · Complies IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP) · Complies with PCI Express Revision 2.1 · Support line rate of 8GT/s and 5.0GT/s per lane · Backward compatibility with existing 1000BASE-T networks simplifies the transition to 10GbE · Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports · Unified Networking Delivering LAN, iSCSI and FCoE in one low-cost CNA · Industrial Dual-Port 10GBASE-T Adapter with Single-Chip solution with Integrated MAC + PHY · Crossover Detection & Auto-Correction (MDI/MDI-X) · LED indicator for monitoring Link/Act · Support Standard and Low-Profile Chassis SPECIFICATIONS: Standard: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3an Interface: 32-bit PCI Express (PCIe x8) Standard 2 * 10G/5G/2.5G/1G/100M RJ-45 Port Chipset: Intel X540-T2 Data Transfer Rate: 10G/5G/2.5G/1G/100M Network Media: 100Base-TX: UTP Cat. 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 2.5GBase-T: UTP Cat. 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 5GBase-T: UTP Cat. 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 10GBase-T: UTP Cat. 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Interrupt Levels: INTA, MSI, MSI-X Manageability: PXE, iSCSI, FCoE Boot Flow Control: IEEE 802.3x Flow Control (Full-Duplex) LEDs: Link/Act Dimension: 145 x 69 mm (PCIe Board) OTHERS: Certification: FCC, CE Package Content: XM-NA6821 2-Port 10GbE Gigabit PCIe NIC CD Driver Disk w/User Guide Low Profile Bracket Supported OS: Windows 7/8/8.1/10/11(32/64-bit); Linux; FreeBSD 11 or later Windows Server 2008, 2012, 2016; VMWare ESXi Environment: Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Return Policy: Seller provides 30-DAY Return Policy provided that the procedures and requirements referred to below are followed: Refunds or exchanges may only be made within 30 days of receiving the merchandise. If an item has been opened or used, a 25% processing fee will be applied for a refund or an exchange. Products that are returned to Seller with missing, damaged or altered Box, Parts, or Accessories will be either refused or charged a processing fee equal or greater than 25%. All other returns due to the reason of Order by Mistake, Change of Mind, Found Better Price are subject to a 40% deduction of the original purchase price. This processing fee is to cover the 2-Way shipping fees of shipping to you and getting the product back. Please read the description thoroughly to ensure it is the right product for you. Please feel free to ask if you have any question prior to placing the order.
