Supermicro SuperServer 6027TR-DTRF 2-Node Server X9DRT-HF CTO No CPU/Memory/HDD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Model | 6027TR-DTRF |
| Product Line | SuperServer |
| Type | Server |
| MPN | 827-12 |
| Brand | Supermicro |
| Form Factor | Rack-Mountable 2U |
| Processor Manufacturer | Intel |

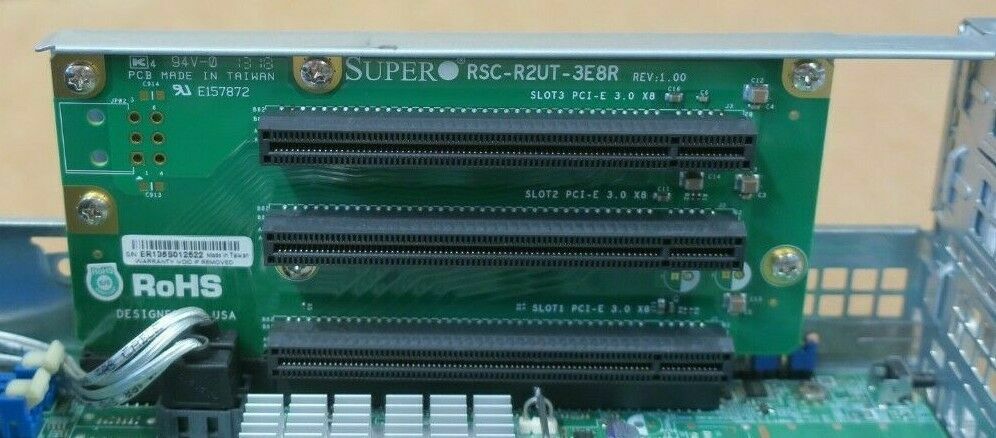

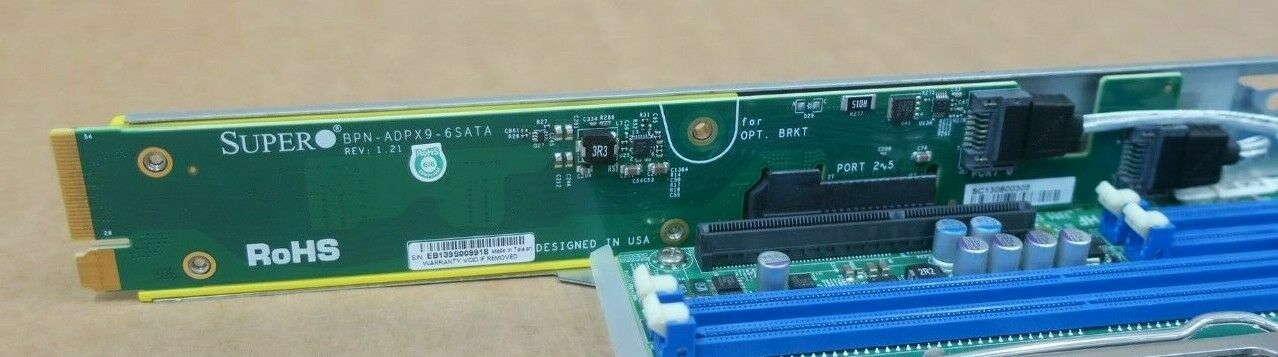

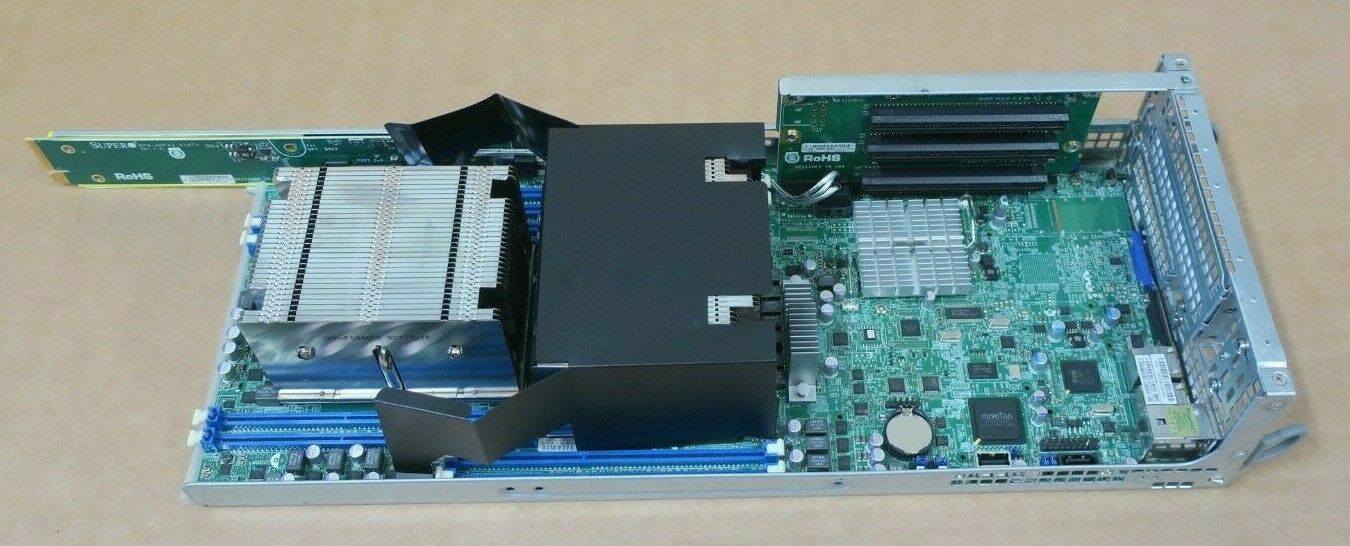

Supermicro SuperServer 6027TR-DTRF 2-Node Server X9DRT-HF CTO No CPU/Memory/HDDChassis P/N: 6027TR-DTRFNode P/N: X9DRT-HFIn Good Condition, Full Working OrderTested, 2 Year WarrantyCTO Configure-To-OrderCTO Server, no memory, no CPU, no HDD included - required in order to operate, we can quote to supply if required Included1 x Supermicro SuperServer 6027TR-DTRF 2-Node Server Chassis12 x 3.5" SAS / SATA Hard Drive Bays With 12 x Hard Drive CaddiesBackplane - Super SAS-827HD rev 1.102 x 1280W Power Supply - PWS-1K28P-SQ2 x Server Nodes Each With:Motherboard - X9DRT-HF rev 1.21A2 x HeatsinksBackplane Adapter - BPN-ADPX9-6SATA rev 1.211 x 2U Riser Card W/ 3 PCI-E x8 Twin MBs - RSC-R2UT-3E8R rev 1.00Full Manufacturers specification: Product SKUsSYS-6027TR-DTRFSuperServer 6027TR-DTRF (Black) Motherboard Super X9DRT-HF Processor/CacheCPUDual Socket R (LGA 2011)Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP *)Note† BIOS version 3.0 or above is requiredCacheUp to 30MBSystem BusQPI up to 8 GT/s System MemoryMemory Capacity8x 240-pin DDR3 DIMM slotsUp to 512GB DDR3 ECC LRDIMMUp to 256GB DDR3 ECC Registered memory (RDIMM)Memory Type1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMsDIMM Sizes32GB, 16GB, 8GB, 4GB, 2GB, 1GBMemory Voltage1.5 V, 1.35 VError DetectionCorrects single-bit errorsDetects double-bit errors (using ECC memory) On-Board DevicesChipsetIntel® C602 ChipsetSATASATA 2.0 & 3.0 with RAID 0, 1, 5, 10IPMISupport for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportNuvoton WPCM450 BMCNetwork ControllersIntel® i350 Dual Port Gigabit EthernetVirtual Machine Device Queues reduce I/O overheadSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output1x Realtek RTL8201N PHY (dedicated IPMI)GraphicsMatrox G200eW Input / Output (per Node)Serial ATA2x SATA 3.0 ports (6Gbps)4x SATA 2.0 ports (3Gbps)LAN2x RJ45 Gigabit Ethernet LAN ports1x RJ45 Dedicated IPMI LAN portUSB3x USB 2.0 ports total (2x rear + 1x Type A)VGA1x VGA portSerial Port / Header1x Fast UART 16550 port / 1 HeaderChassisForm Factor2U RackmountModelCSE-827HD-R1K28B DimensionsWidth17.25" (438mm)Height3.47" (88mm)Depth28.5" (724mm)Gross Weight85 lbs (38.6kg)Available ColorsBlack Front PanelButtonsPower On/Off buttonSystem Reset buttonUID buttonLEDsPower status LEDHDD activity LED2x Network activity LEDsUniversal Information (UID) LED Expansion Slots (per Node)PCI-Express3x PCI-E 3.0 (x8) slots (1x Low-profile and 2x Full-height half-length) Drive Bays (per Node)Hot-swap6x 3.5" Hot-swap SATA3/SATA2 HDD trays System CoolingFans4x 8cm heavy duty PWM fans with optimal fan speed control Power Supply1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2AC Input1000W Output @ 100-140V, 8-12A, 50-60Hz1280W Output @ 180-240V, 6-8A, 50-60HzDC Output1000W: +12V/83A; +5Vsb/4A1280W: +12V/106.7A, +5Vsb/4ACertificationPlatinum Certified System BIOSBIOS Type128Mb SPI Flash EEPROM with AMI BIOSBIOS FeaturesPlug and Play (PnP)APM 1.2PCI 2.2ACPI 1.0 / 2.0USB Keyboard supportSMBIOS 2.3UEFI Operating Environment / ComplianceRoHS RoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing) We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote. CS See RJ -150 dup dup .co.ukCS 254266 254267 254268 254269 254270 254271 254272 254273 254274 254275 254276 254277 254278 254279 254280 254281 254282 254283 254284 254285 254286 254287 254288 254289 254290 254291 254292 254293 254294 254295 254296 254297 254298 254299 254300 254301 254302 dup dup.co.uk
