HD15 VGA Monitor Female to DB15 MAC Male Converter Adapter w/ Dip Switches
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | AD-A03-1 |
| Type | AV Adapter/Converter |
| MPN | AD-A03-1 |
| Connector A | DB15 Male |
| Brand | CablesOnline |

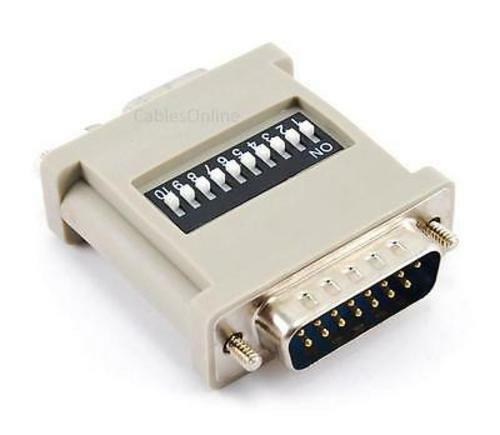

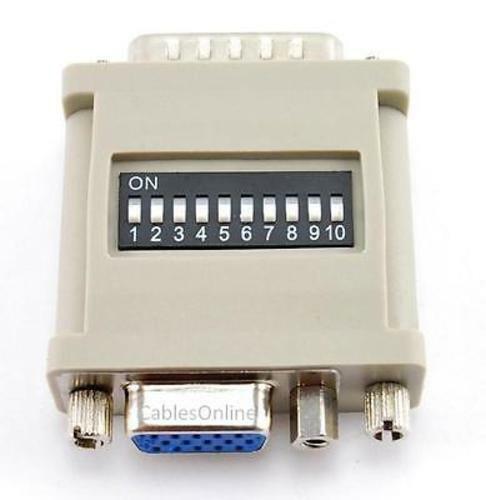

HD15 VGA Monitor Female to DB15 MAC Male Converter Adapter w/ Dip Switches This adapter is used to connect an VGA/SVGA Monitor to a Macintosh Computer. The MAC Computer has a two row DB15 female connector. The PC Monitor has a 3 row high density DB15 male cable. Features: 1 x DB15 male1 x HD15 femaleConnects a VGA/SVGA Monitor to a MAC ComputerFeatures 10 Dip Switches Molded adapter with nickel plated contacts for superior connectionColor: Beige1x adapter included CablesOnline Part Number: AD-A03-1 MonitorResolutionMode 1Mode 2Mode 3Mode 4Mode 5Mode 612 RGB512_384134513456134713461346713413 RGB640_48066Hz 1451456147146146714PORTRAIT640_8702345234562347234623467234VGA/SVGA640_480/800_600 60Hz235235623723623672315" TILT245245624724624672416-COLOR832_624135135613713613671319-COLOR1024_768125125612712612671221-COLOR1152_87012345123456123471234612346712342-PAGE MONO1152_8703453456347346346734NTSC1245124561247124612467124NTSC / PAL1235123561237123612367123HI-RES (12-141451456147146146714MULTIPLE SCAN 141458914568914789146891467891489MULTIPLE SCAN 161458145681478146814678148MULTIPLE SCAN 211459145691479146914679149 Mode 1 is Composite SYNC (1)SYNC signal (DB15M Pin 3) connected to DB15F Pin 13Mode 2 is Composite SYNC (2)DB15M Pin 3 & 15 Conn HD15F Pin 13Mode 3 is SYNC on VDB15M Pin 12 Conn HD15F Pin 14Mode 4 is SYNC on HDB15M Pin 15 Conn HD15F Pin 13Mode 5 is Separate SYNCDB15M Pin 12 Conn HD15F Pin 14DB15M Pin 15 Conn HD15F Pin 13Mode 6 is SYNC on GreenSYNC on Green One example for how to setup the Dip Switches: For Mode1, Monitor 12RGB, Resolution 521_384 SW1SW2SW3SW4SW5SW6SW7SW8SW9SW10ON OFFONONON OFF OFF OFF OFF OFF
