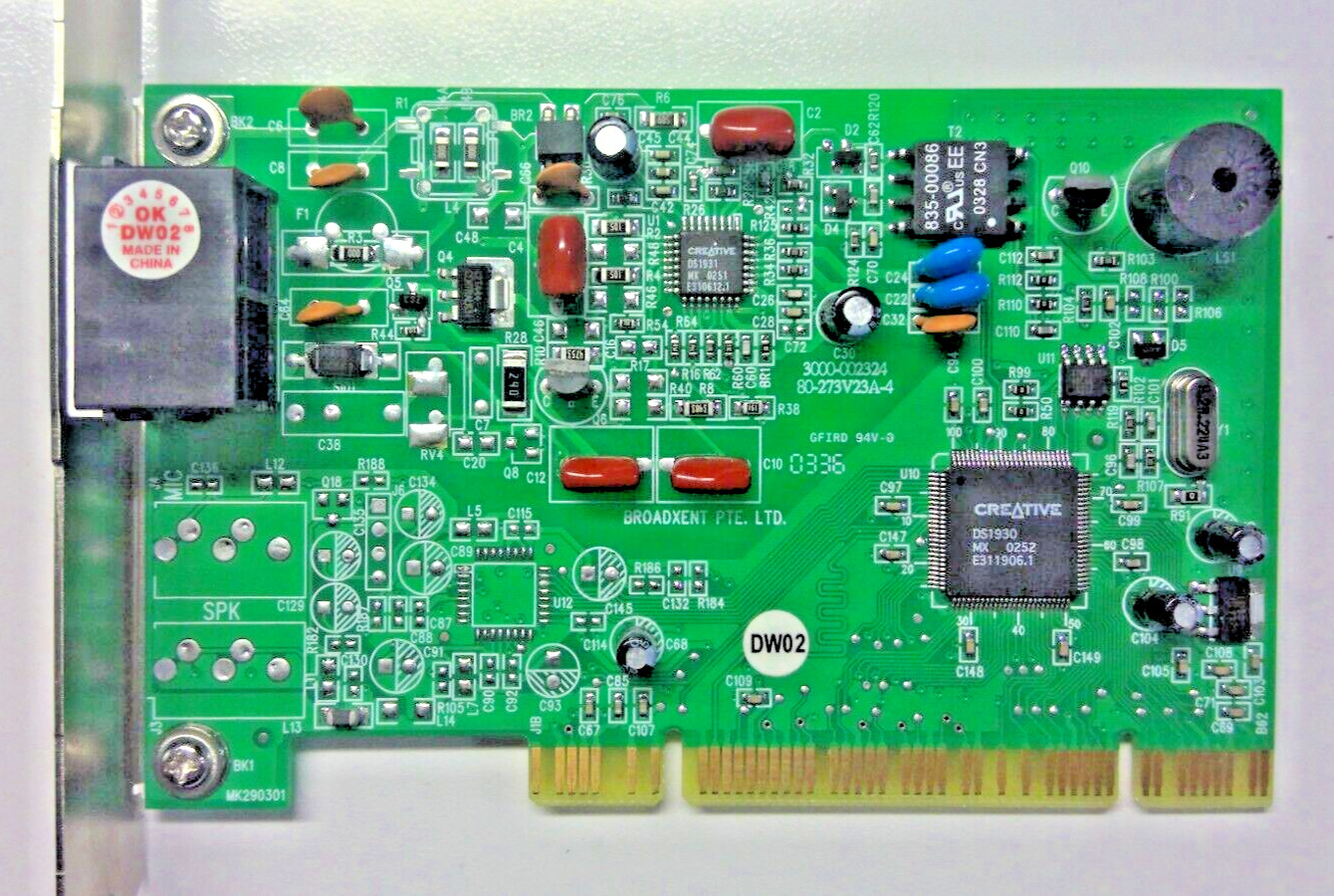

Creative Broadxent Fax Modem Blaster DI5630-5/DI5633 PCI
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Compatible Brand | Universal |
| External Interfaces | DSL/Phone (RJ-11) |
| MPN | 245-05633-00 |
| Standards | Bell 103 |
| Maximum Data Rate | 56 KBps |
| Compatible Product Line | Universal |
| Form Factor | PCI |
| Type | Modem/Fax Card |
| Number Of Ports | 2 Ports |
| Model | 245-05633-00 |
| Country/Region Of Manufacture | China |
| Compatible Port | PCI |
| Internal Interfaces | RJ-11 |
Creative Broadxent Fax Modem Blaster DI5630-5DI5633 PCI: Full Specifications: Type: Internal PCI modem Chipset: Conexant CX06834-22Z Speed: Download: Up to 56 Kbps Upload: Up to 33.6 Kbps Standards Supported: Data Standards: V.92 V.90 V.34 V.32bis V.22bis V.21 Bell 212A Bell 103 Error Correction and Data Compression: V.42 (error correction) V.42bis (data compression) V.44 (data compression) MNP2-5 Fax Standards: V.17 V.29 V.27ter V.21 Channel 2 Ports: 2 x RJ-11 phone line jacks (one for line, one for phone) Power Requirements: Requires a 3.3-V auxiliary power rail on PCI bus Uses only one PCI load (one grant/request pair), one shared IRQ, one electrical load Operating System Support: Windows 2000, XP, Vista, 7, 8, 10, 11 Mac OS Linux Dimensions: Complies with PCI low profile specifications: 6.7 x 2.3 inches (17.0 x 5.8 cm) Supports high- and low-profile brackets Operating Temperature: 0° to 70°C (32° to 158°F) Operating Humidity: 20% to 90%, non-condensing Safety Certifications: UL recognized to UL 1950, 3rd edition (U.S. and Canada) IEC 950 (TUV, NEMKO, DEMKO, SEMKO) CE Mark Interesting Facts: V.92 Standard: The V.92 standard allows for faster upload speeds and features like “Modem-on-Hold,” which lets you pause your internet connection to take a phone call without disconnecting. Dual Ports: The dual RJ-11 ports allow you to connect both a phone line and a telephone, enabling you to use the modem for both internet and fax purposes. Digital Line Protection: The modem includes digital line protection to prevent damage from high voltage surges on the phone line. Call Progress Monitoring: It features an on-board piezo device for call progress monitoring, which provides audible feedback during dialing and connection. Power Management: Supports ACPI and PPMI 1.1, with wake support via PME and Vaux, meeting PCI 2.3 and PC 2001 requirements. Legacy Technology: While dial-up modems are largely obsolete in today’s broadband-dominated world, they were once essential for internet connectivity, especially in rural or remote areas where high-speed internet was unavailable. Conexant: Conexant, the manufacturer of the chipset, was a major player in the semiconductor industry, known for its innovations in communication technologies.
