400’FT Gel CAT6 OUTDOOR WATERPROOF UNDERGROUND BURIAL USA Copper Network CABLE
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | Does Not Apply |
| Category | Cat 6 |
| Country/Region Of Manufacture | United States |
| Connector A | Cat 6 |
| Brand | Unbranded/Generic |
| Color | Black |
| Cable Length | 400FT |
| Type | Ethernet Patch Raw |

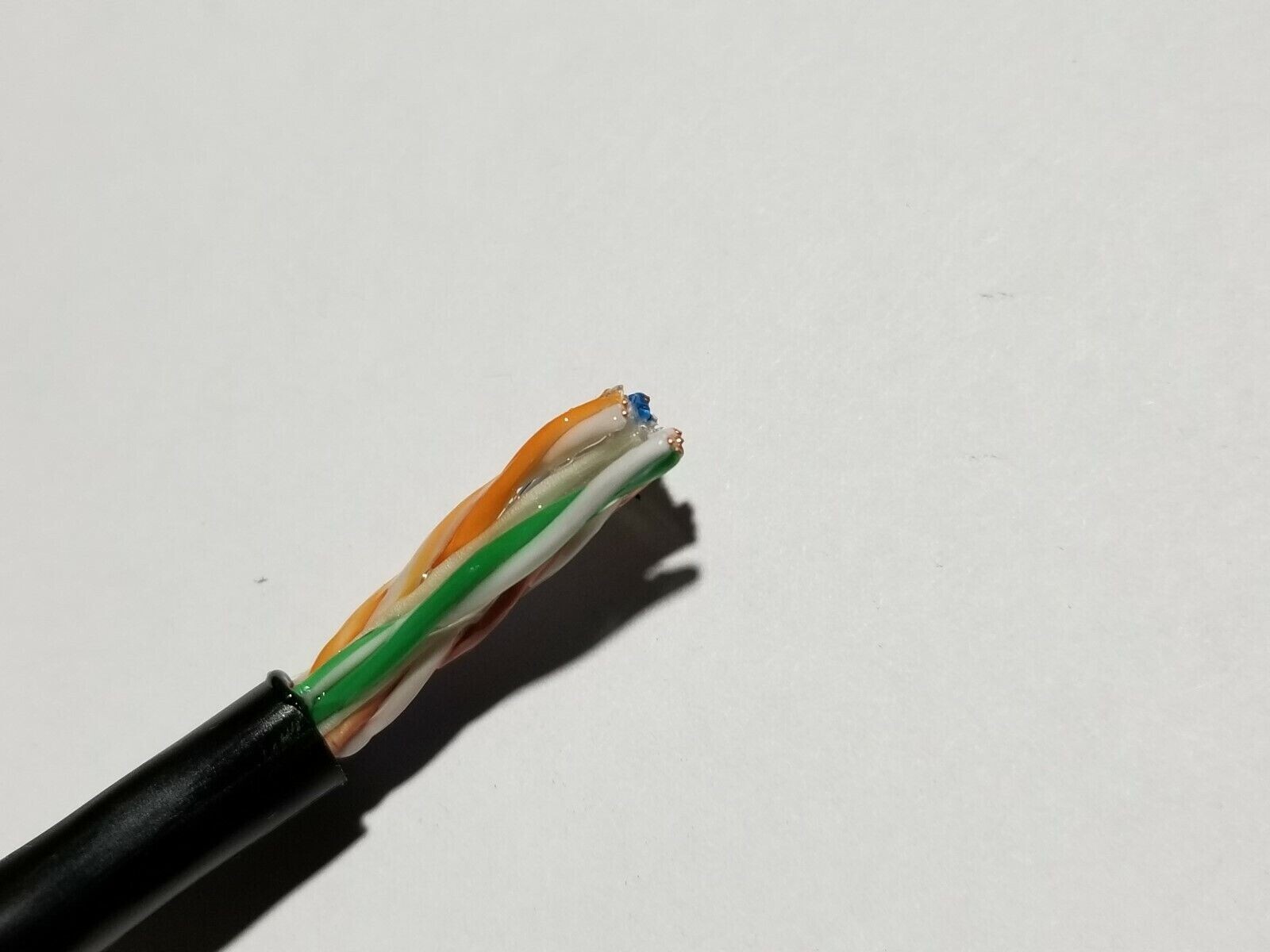

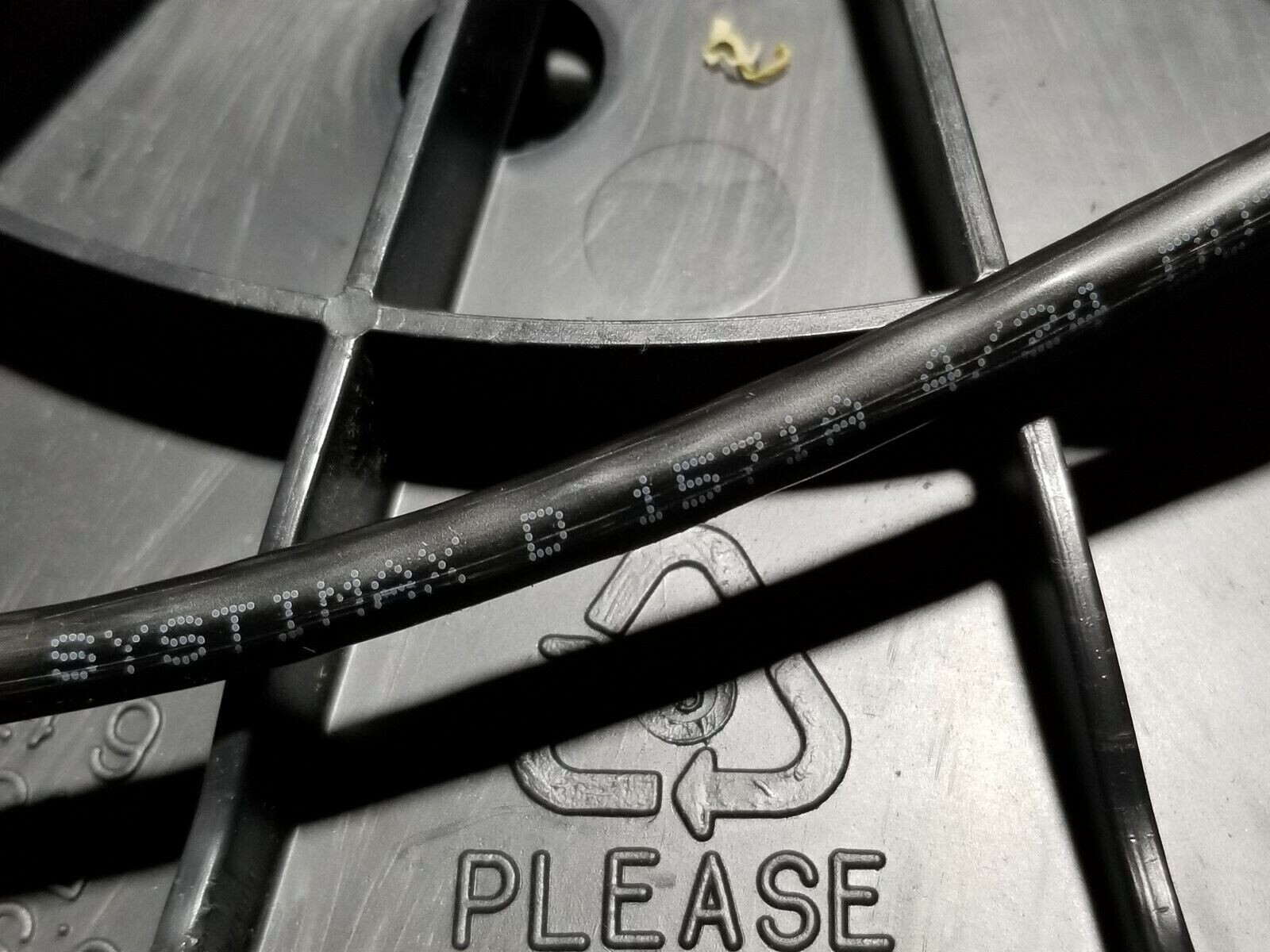

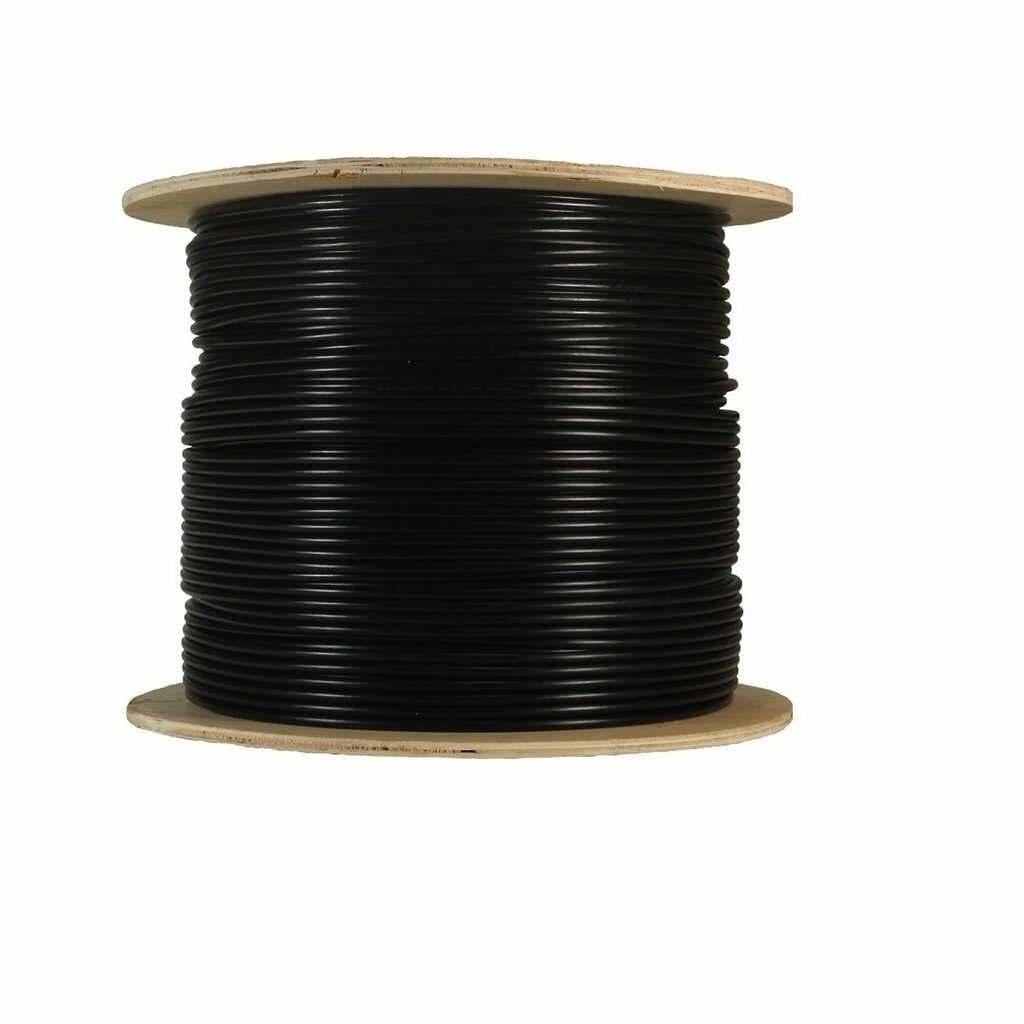

1517A 400'FT Cat6 Outdoor Direct Burial Gel USA Cable waterproof network copper Cut from a New cable Spool - One Cable Long with No Terminated on the end of Cable. Brand New – Factory Sealed - Lowest price Our strategy is to provide the customer with direct access to wholesale prices. Please contact us with any questions you may have, we will work hard to make sure your transaction is as quick and smooth as possible Product Classification Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America Portfolio SYSTIMAX® Product Type Twisted pair cable Product Brand GigaSPEED XL® General Specifications Product Number 1571A ANSI/TIA Category 6 Cable Component Type Horizontal Cable Type U/UTP (unshielded) Conductor Type, singles Solid Conductors, quantity 8 Jacket Color Black Pairs, quantity 4 Separator Type Bisector | Tape separator Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E Dimensions Cable Length 304.8 m | XX’FT Diameter Over Jacket, nominal 6.604 mm | 0.26 in Jacket Thickness 0.635 mm | 0.025 in Conductor Gauge, singles 24 AWG Cross Section Drawing Click on image to enlarge. Electrical Specifications Characteristic Impedance 100 ohm dc Resistance Unbalance, maximum 5 % dc Resistance, maximum 9.38 ohms/100 m | 2.859 ohms/100 ft Delay Skew, maximum 45 ns Dielectric Strength, minimum 1500 Vac | 2500 Vdc Mutual Capacitance at Frequency 6.0 nF/100 m @ 1 kHz Nominal Velocity of Propagation (NVP) 65 % Operating Frequency, maximum 250 MHz Operating Voltage, maximum 80 V Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A Safety Voltage Rating 300 V Segregation Class b Material Specifications Conductor Material Bare copper Insulation Material Polyolefin Jacket Material PE Separator Material Polyolefin Mechanical Specifications Pulling Tension, maximum 11.34 kg | 25 lb Environmental Specifications Installation temperature -30 °C to +70 °C (-22 °F to +158 °F) Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F) EN50575 CPR Cable EuroClass Fire Performance Fca Environmental Note UV resistant for outdoor and/or direct burial installations Environmental Space Buried Safety Standard ANSI/ICEA S-107-704-2012 Packaging and Weights Cable weight Packaging Type Regulatory Compliance/Certifications Agency Classification ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system ROHS Compliant REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance UK-ROHS Compliant
